Avionic PRO C2822 KV1200 brushless motor

Product #: 2327
Price:
Stock:
In Stock
Store:
RcBazaar

Reviews:
Free Shipping
Introducing Avionic series of brushless motors.
Made from the highest quality magnets, casing and bearings this at the best available quality of motors at such a great value in the market till date.
These motors are specifically designed keeping in mind on how to get the maximum torque at the most optimal RMP and are made for RC controlled models only and will last for more than what your RC model asks for.

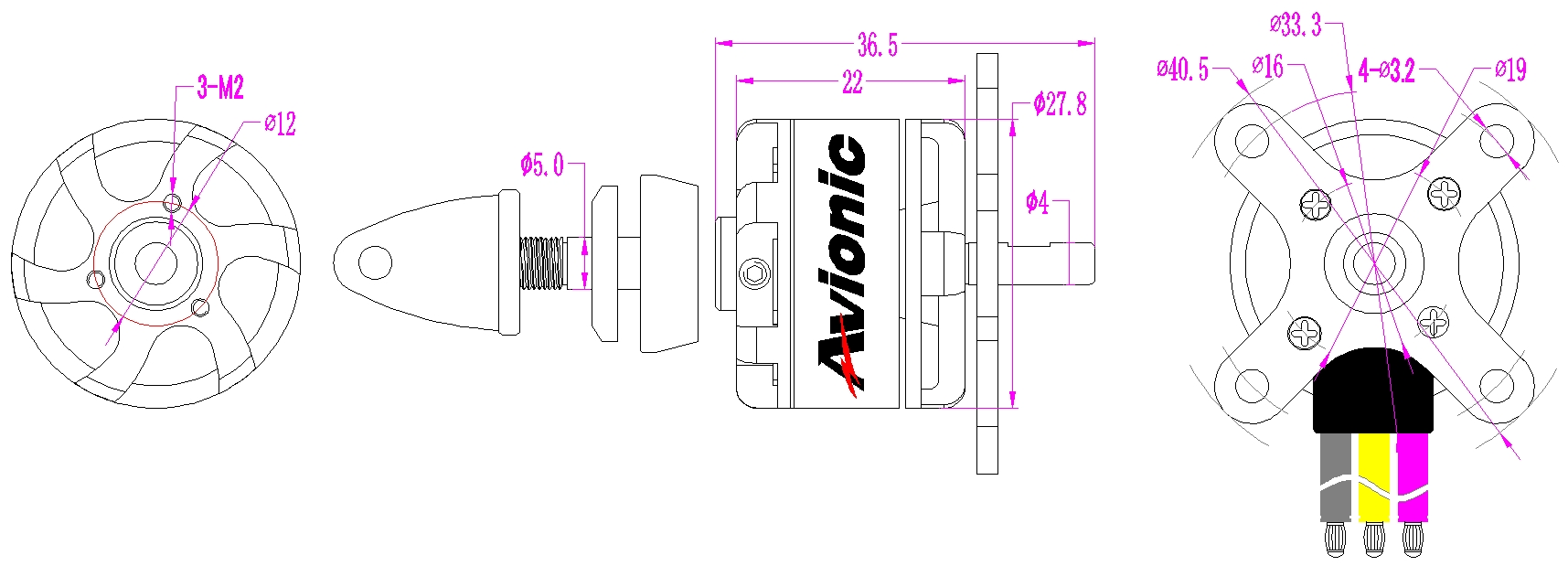

Specification:

● Stator Diameter: 22.0 mm(0.866 in)
● Stator Thickness: 6.0 mm(0.236 in)
● No. of Stator Arms: 12
● No. of Magnet Poles: 14
● Motor Wind: 11 Turn Y
● Motor Kv: 1200 RPM / Volt
● No-Load Current (Io): 0.5 Amps @ 10 volts
● Max Continuous Current: 12 Amps
● Max Continuous Power: 150 Watts
● Weight: 41 Grams(1.446oz)
● Outside Diameter: 27.8 mm(1.094 in)
● Shaft Diameter: 4.0 mm(0.157 in)
● Body Length: 22.0 mm(0.866 in)
● Overall Shaft Length: 36.5 mm(1.437 in)
● Max LiPo Cell: 3-4 S
● Motor Timing: 5°
● Drive Frequency: 8kHz


Combination of usage:
● Get 250gms Thrust
PROP – 7x3E
Lipo – 2cell 7.4V
ESC - 20 amp
● Get 350gms Thrust
PROP – 8x4E
Lipo – 2cell 7.4V
ESC - 20 amp
● Get 425gms Thrust
PROP – 9x6E
Lipo – 2cell 7.4V
ESC - 20 amp
● Get 475gms Thrust
PROP – 10x5E
Lipo – 2cell 7.4V
ESC - 20 amp
● Get 280gms Thrust
PROP – 7x3E
Lipo – 2cell 7.4V
ESC - 30 amp
● Get 375gms Thrust
PROP – 8x4E
Lipo – 2cell 7.4V
ESC - 20 amp
● Get 400gms Thrust
PROP – 9x6E
Lipo – 2cell 7.4V
ESC - 20 amp
● Get 490gms Thrust
PROP – 10x5E
Lipo – 2cell 7.4V
ESC - 20 amp
● Get 425gms Thrust
PROP – 7x3E
Lipo – 3cell 11.1V
ESC - 30 amp
● Get 500gms Thrust
PROP – 8x4E
Lipo – 3cell 11.1V
ESC - 30 amp
● Get 580gms Thrust
PROP – 9x6E
Lipo – 3cell 11.1V
ESC - 30 amp
● Get 650gms Thrust
PROP – 10x5E
Lipo – 3cell 11.1V
ESC - 30 amp
