Avionic PRO C2826 KV1900 brushless motor

Product #: 2336
Price:
Stock:
In Stock
Store:
RcBazaar

Reviews:
Free Shipping
Introducing Avionic PRO series of brushless motors.
Made from the highest quality magnets, casing and bearings this at the best available quality of motors at such a great value in the market till date.
These motors are specifically designed keeping in mind on how to get the maximum torque at the most optimal RMP and are made for RC controlled models only and will last for more than what your RC model asks for.

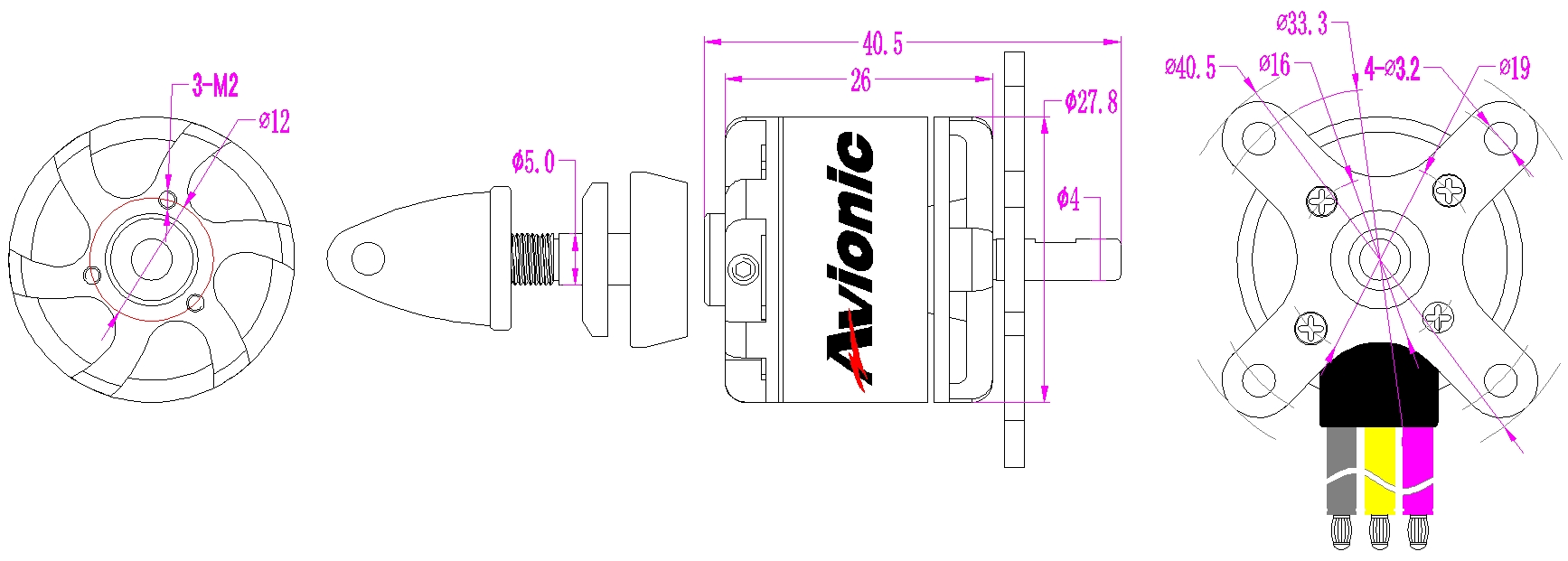

Specification:
● Stator Diameter: 22.0 mm(0.866 in)
● Stator Thickness: 10.0 mm(0.394 in)
● No. of Stator Arms: 12
● No. of Magnet Poles: 14
● Motor Wind: 8 Turn D
● Motor Kv: 1900 RPM / Volt
● No-Load Current (Io): 1.4 Amps @ 10 volts
● Max Continuous Current: 21 Amps
● Max Continuous Power: 200 Watts
● Weight: 54 Grams(1.905oz)
● Outside Diameter: 27.8 mm(1.094 in)
● Shaft Diameter: 4.0 mm(0.157 in)
● Body Length: 26.0 mm(1.024 in)
● Overall Shaft Length: 40.5 mm(1.594 in)
● Max LiPo Cell: 3 S
● Motor Timing: 5°
● Drive Frequency: 8kHz



LOAD TEST REPORT
Voltage/V PROP PULL/g CURRENT/A ESC
11.1 5*4 E 430 10.2 18A
11.1 6*3 E 688 15.7 25A
11.1 6*5 E 712 17.6 25A
11.1 7*4 E 920 27.8 40A
