Avionic PRO C2836 KV880 brushless motor

Product #: 2341
Price:
Rs1,285.00 Price drop alert!
Stock:
In Stock
Store:
RcBazaar

Reviews:
Free Shipping
Introducing Avionic PRO series of brushless motors.
Made from the highest quality magnets, casing and bearings this at the best available quality of motors at such a great value in the market till date.
These motors are specifically designed keeping in mind on how to get the maximum torque at the most optimal RPM and are made for RC controlled models only and will last for more than what your RC model asks for.

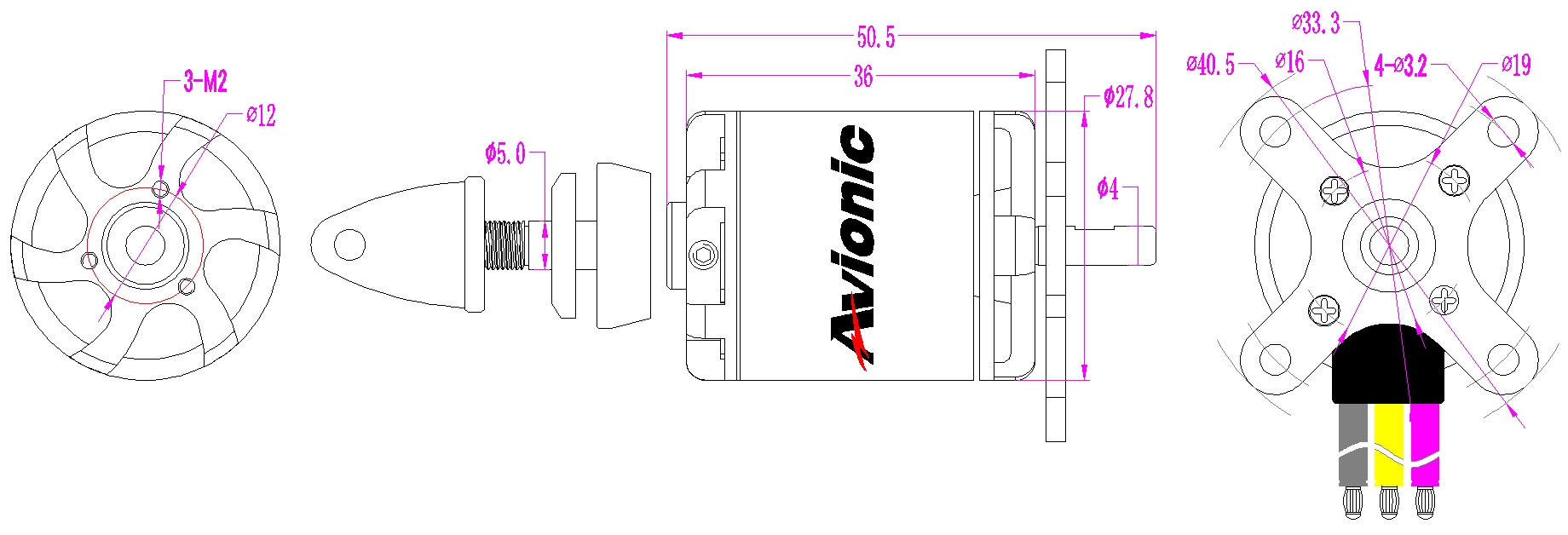

Specification:

● Stator Diameter: 22.0 mm(0.866 in)
● Stator Thickness: 20.0 mm(0.787 in)
● No. of Stator Arms: 12
● No. of Magnet Poles: 14
● Motor Wind: 7 Turn D
● Motor Kv: 880 RPM / Volt
● No-Load Current (Io): 1.0 Amps @ 10 volts
● Max Continuous Current: 25 Amps
● Max Continuous Power: 370 Watts
● Weight: 88 Grams(3.104oz)
● Outside Diameter: 27.8 mm(1.094 in)
● Shaft Diameter: 4.0 mm(0.157 in)
● Body Length: 36.0 mm(1.417 in)
● Overall Shaft Length: 50.5 mm(1.988 in)
● Max LiPo Cell: 3-4 S
● Motor Timing: 5°
● Drive Frequency: 8kHz


LOAD TEST REPORT
Voltage/V PROP PULL/g CURRENT/A ESC
11.1 9*3.8 E 771 11.5 20A
11.1 9*4.7 SF 855 13 20A
11.1 9*6 SF 1050 20.8 30A
11.1 10*4.7 SF 1190 21.3 30A
11.1 10*5 E 1100 20.3 30A
11.1 10*7 E 1210 24.8 40A
11.1 11*10 E 1370 31 40A
11.1 12*6 E 1512 28.8 40A
14.8 8*3.8 E 1060 17.1 30A
11.1 9*3.8 E 1280 18.5 30A
11.1 10*5 E 1680 31.3 40A
