Avionic PRO M1818 KV3500 MICRO brushless motor

Product #: 2299
Price:
Stock:
In Stock
Store:
RcBazaar

Reviews:
Free Shipping
Introducing Avionic PRO series of brushless motors and this is our Mini Series.
You will be struck by the build quality and performance of this motors and did we forget to mention that its only 10gms in weight?..
Made from the highest quality magnets, casing and bearings this at the best available quality of motors at such a great value in the market till date.
These motors are specifically designed keeping in mind on how to get the maximum torque at the most optimal RPM and are made for RC controlled models only and will last for more than what your RC model asks for.

Specification:
Stator Diameter: 14.0 mm(0.551 in)
Stator Thickness: 4.0 mm(0.157 in)
No. of Stator Arms: 9
No. of Magnet Poles: 12
Motor Wind: 14 Turn Y
Motor Kv: 3500 RPM / Volt
No-Load Current (Io): 0.4 Amps @ 7 volts
Max Continuous Current: 6.5 Amps
Max Continuous Power: 40 Watts
RESISTANCE 330 mΩ
Weight: 10 Grams (0.35oz)

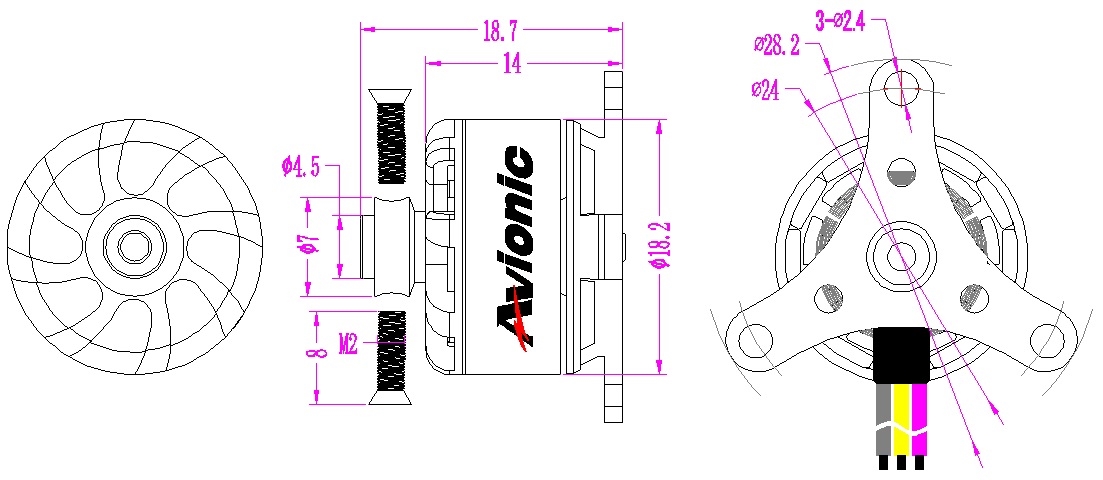

Outside Diameter: 18.2 mm(0.72 in)
Shaft Diameter: 2.0 mm(0.08 in)
Body Length: 18.7 mm(0.74 in)
Overall Shaft Length: 19.8 mm(0.78 in)
Max LiPo Cell: 1-2 S
Motor Timing: 5°
Drive Frequency: 8kHz


LOAD TEST REPORT
Voltage (V) Prop Pull (Gms) Current (Amp draw) ESC
7.4 GWS 3x3 85 3.6 10A
7.4 AEO 4x2.5 123 4.6 10A
7.4 GWS 4.5x3 120 5.7 10A
7.4 GF 5x3 145 5.6 10A
7.4 GF 6x3 163 6.5 10A
