Avionic PRO M2024 KV1600 MICRO brushless motor

Product #: 2309
Price:
Stock:
In Stock
Store:
RcBazaar

Reviews:
Free Shipping
Introducing Avionic PRO series of brushless motors and this is our Mini Series.
You will be struck by the build quality and performance of this motors and did we forget to mention that its only 21gms in weight?..
Made from the highest quality magnets, casing and bearings this at the best available quality of motors at such a great value in the market till date.
These motors are specifically designed keeping in mind on how to get the maximum torque at the most optimal RPM and are made for RC controlled models only and will last for more than what your RC model asks for.

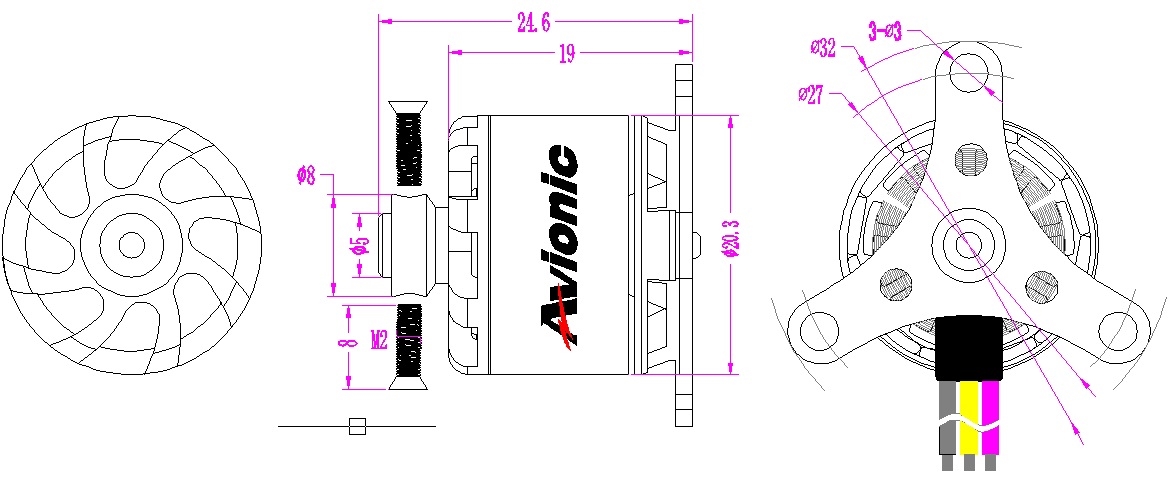

Specification:
Stator Diameter: 16.5 mm(0.65 in)
Stator Thickness: 8.0 mm(0.31 in)
No. of Stator Arms: 9
No. of Magnet Poles: 12
Motor Wind: 14 Turn Y
Motor Kv: 1600 RPM / Volt
No-Load Current (Io): 0.3 Amps @ 7 volts
Max Continuous Current: 7.7 Amps
Max Continuous Power: 60 Watts
RESISTANCE 320 mΩ
Weight: 21 Grams(0.74oz)
Outside Diameter: 20.3 mm(0.799 in)
Shaft Diameter: 2.0 mm(0.079 in)
Body Length: 24.6 mm(0.969 in)
Overall Shaft Length: 25.5 mm(1.004 in)
Max LiPo Cell: 2-3 S
Motor Timing: 5°
Drive Frequency: 8kHz


LOAD TEST REPORT
Voltage (V) Prop Pull (Gms) Current (Amp draw) ESC
7.4 GF 5x3 105 1.7 12A
7.4 GF 5x4 113 2.1 12A
7.4 GF 6x3 140 2.4 12A
7.4 AEO 7x3.5 180 3.0 12A
7.4 EMP 8x3.8 SF 243 6.5 12A
7.4 GWS 8x4.3 250 6.7 12A
7.4 GWS 8x6 230 8.0 12A
7.4 LCD 8x4 199 5.3 12A
11.1 GF 5x3 196 3.1 12A
11.1 GF 6x3 263 4.4 12A
11.1 AEO 7x3.5 295 6.1 12A
11.1 EMP 8x3.5 SF 345 10.5 12A
11.1 LCD 8x4 312 8.8 12A
