Avionic PRO M2230 KV1780 MICRO brushless motor

Product #: 2324
Price:
Stock:
In Stock
Store:
RcBazaar

Reviews:
Free Shipping
Introducing Avionic PRO series of brushless motors and this is our Mini Series.
You will be struck by the build quality and performance of this motors and did we forget to mention that its only 32gms in weight?..
Made from the highest quality magnets, casing and bearings this at the best available quality of motors at such a great value in the market till date.
These motors are specifically designed keeping in mind on how to get the maximum torque at the most optimal RPM and are made for RC controlled models only and will last for more than what your RC model asks for.

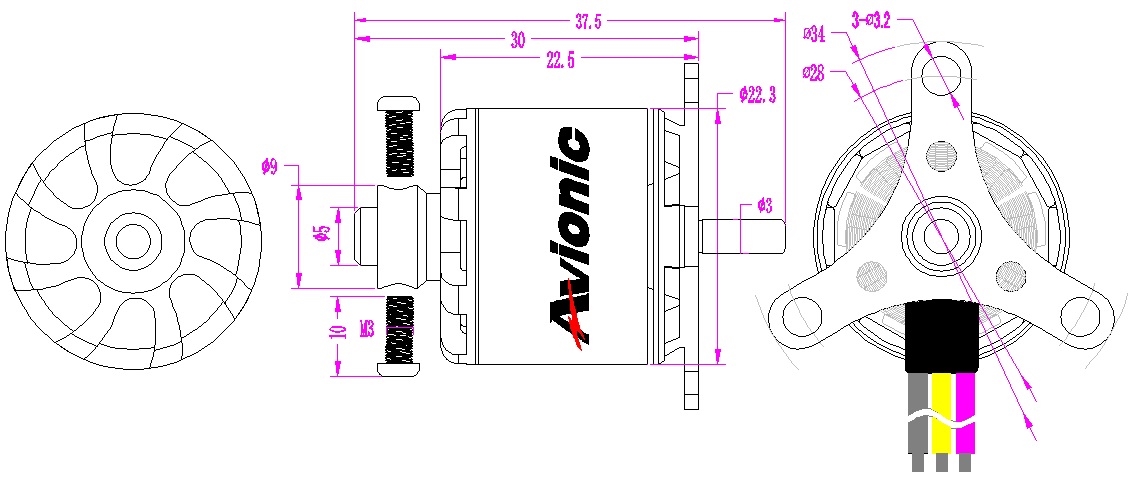

Specification:
Stator Diameter: 18.2 mm(0.717 in)
Stator Thickness: 12.0 mm(0.472 in)
No. of Stator Arms: 9
No. of Magnet Poles: 12
Motor Wind: 13 Turn D
Motor Kv: 1780 RPM / Volt
No-Load Current (Io): 0.6 Amps @ 7 volts
Max Continuous Current: 12 Amps
Max Continuous Power: 90 Watts
RESISTANCE 105 mΩ
Weight: 32 Grams(1.129oz)
Outside Diameter: 22.3 mm(0.878 in)
Shaft Diameter: 3.0 mm(0.118 in)
Body Length: 30.0 mm(1.181 in)
Overall Shaft Length: 37.5 mm(1.476 in)
Max LiPo Cell: 2-3 S
Motor Timing: 5°
Drive Frequency: 8kHz


LOAD TEST REPORT
Voltage (V) Prop Pull (Gms) Current (Amp draw) ESC
7.4 AEO 7x3.5 256 6.2 10A
7.4 GWS 8x4.3 445 11.7 18A
7.4 LCD 7x3.5 210 5.3 10A
7.4 LCD 8x4 333 9.1 18A
7.4 EMP 8x3.8 SF 437 12.6 18A
11.1 GF 5x3 260 4.9 10A
11.1 GF 5x4 307 6.3 10A
11.1 GF 6x3 390 7.3 18A
11.1 LCD 7x3.5 437 9.8 18A
11.1 LCD 8x4 603 15.8 25A
11.1 XXD 8x4 701 16.8 25A
11.1 EMP 8x3.8 SF 700 20.6 25A
