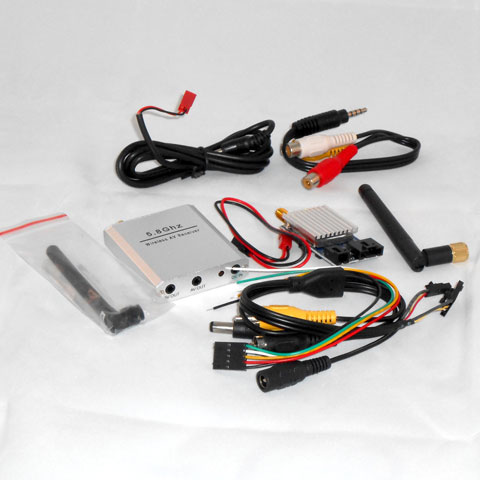

FPV Kit 5.8G 200mW A/V Tx/Rx System with Sony CCD 420TVL Camera

Product #: 11969
Price:
Rs3,650.00 Price drop alert!
Stock:
In Stock
Store:
Quadkopter

Reviews:
Free Shipping

5.8G 200mW A/V Transmitting/receiving along with a SONY CCD camera with original Sony DSP Chipset. 5.8G is a good choice for avoiding interference for customers using 2.4G radio system

Specifications of Tx/Rx system
Transmitting unit weight: 34.5g
Power input: 12V ± 5%
Receiving current: 100mA
Transmitting current: 100mA
Transmitter Channel number: 8-ch
Receiver channel number: 4-ch
Antenna gain: 3db
Video signal resistance: 75Ω
Antenna connection: SMA

Details of channel frequencies of the transmitter:
CH1: 5705 CH2:5685
CH3:5665 CH4:5645
CH5:5885 CH6:5905
CH7:5925 CH8:5945
Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX, and such damage is not covered by warranty.

Sony CCD Camera

1/3 Sony color CCD, 420TVL
The minimum illumination 0.5LUX
Size: 32X38mm
DC12V, 85mA
SONY420TVL low illumination (633 +405), it is suit to monitor in daylight!

Specifications:

Image Sensor Sony low illumination (3142 + 405)
Total Pixels PAL: 500H×582V NTSC: 510H×492V
Signal System PAL/NTSC
Horizontal Resolution 420TVL
Min. Illumination 0.5LUX/F1.2
S/N radio ≥48dB
Video Output 1.0Vp-p/75ohm
White Balance Mode Auto Tracking
BLC(back light compensation) Auto/Manual
Exposure Mode Electronic Exposure
Electronic Shutter 1/50(1/60) – 1/100000s
Gamma 0.45
Sync System Internal
Audio output Off (On Option)
Power DC12V±5%
Operation temperature 20—60 degrees
